With rapid urbanisation and increasing strain on public water supply systems, especially in cities like Bengaluru and Chennai, sustainable water management has become essential. Rainwater Harvesting (RWH) is one of the simplest and most effective methods to address water scarcity, reduce urban flooding, and restore groundwater levels. This guide provides a clear overview of what RWH is, why it matters, how it works, and what it costs.
What is RWH?
Rainwater Harvesting (RWH) refers to the practice of collecting and storing rainwater for use or directing it into the ground to replenish groundwater. This can be achieved through two main methods: direct storage of rooftop rainwater and groundwater recharge using recharge wells.
Understanding the benefits of RWH will help in having a strong drive towards implementing it.
Why practise RWH?
Rainwater harvesting provides a sustainable and effective solution to urban water scarcity. In rapidly growing cities where municipal water supply and groundwater sources often fall short, RWH offers households a way to secure water independence.
Key benefits include:
- Rainwater harvesting reduces dependence on conventional water sources such as piped municipal supply, private water tankers, and borewells, allowing households to become more self-reliant.
- It plays a crucial role in mitigating urban flooding by lowering the volume of rainwater that enters stormwater drains or roads during heavy rainfall.
- By enabling groundwater recharge, RWH helps raise the local water table and improve the yield of borewells, an outcome that is particularly impactful when practised collectively at the community level.
- Finally, rainwater harvesting enhances resilience against seasonal water shortages, offering a reliable buffer during dry periods when other sources may be limited or unavailable.
In essence, RWH transforms rainwater from a runoff and flood risk into a reliable water resource. Understanding how the system works is key to appreciating the value it can provide, not only to individual households but also to entire communities.
Read more: Bengaluru, second highest in rainwater harvesting in Indian cities
How does RWH work?
RWH systems are typically implemented in two broad ways:
1. Rooftop rainwater harvesting with direct storage

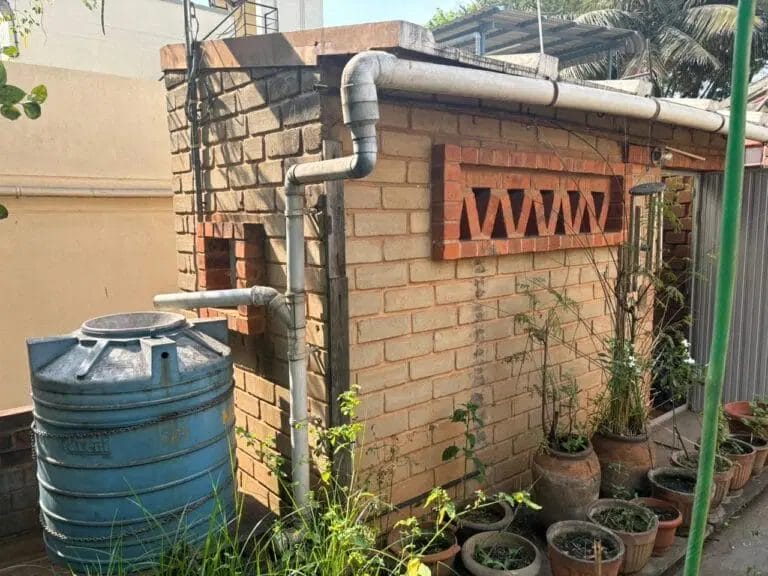

Rainwater falling on terraces is channelled through downpipes, filtered, and stored in tanks, sumps, or rain barrels for domestic use. This stored water may be used for non-potable purposes such as cleaning, gardening and flushing, and—with proper filtration, even for drinking and cooking.
2. Groundwater recharge
Rainwater from rooftops, paved surfaces, or open areas is diverted into recharge wells. These wells are stabilised with perforated concrete rings and have an unlined bottom to allow water to percolate into the underlying aquifers.
A typical recharge well, having a diameter of 3 feet and a depth of 20 feet, is capable of holding approximately 4,000 litres of water. It can also recharge at rates varying from 1000 litres an hour to sometimes 10000 litres an hour.
Benefits and water yields
RWH systems can provide substantial water savings. For example:
- A family of four in a 30×40-foot home with a 1,000-square-foot roof area for collection in Bengaluru can expect rainwater to meet four to five months of their annual water needs.
- With a 6,000-litre tank, a household consuming 100 litres per person per day can cover approximately 200 days of water usage from rain alone.
Groundwater recharge systems not only support water sustainability but also mitigate local flooding and enhance the performance of borewells. These benefits are even more compelling when weighed against the modest cost and effort required for installation.
Costs and construction timeline
Rooftop RWH systems
- Retrofitting existing homes: ₹20,000 to ₹50,000 for plots up to 60 x 40 feet, depending on whether existing infrastructure (such as sumps or tanks) can be used.
- New constructions: Costs are minimal if integrated during the design phase.
- Installation timeline: Typically, it takes one to two weeks.
Recharge wells
- Cost per well (3 feet in diameter and 20 feet deep) ranges from ₹50,000 to 70,000.
- Construction is usually completed within a few days.
While costs may vary based on materials and labour, the long-term savings and benefits far outweigh the initial investment. To ensure the effectiveness and safety of these systems, it is equally important to consider the quality of the collected rainwater.
Is rainwater safe for use?
Rainwater is inherently pure. If collected from clean rooftops and passed through well-maintained filters, it is safe for various uses. For drinking and cooking, additional filtration and water quality testing are strongly advised.
Water recharged into the ground undergoes natural filtration through the soil, provided drains are kept free from contaminants. Ensuring water quality also means maintaining the RWH system regularly.
Maintenance requirements
Simple maintenance routines can go a long way in ensuring the longevity and reliability of the system. RWH systems are generally low-maintenance; however, they do require periodic attention to ensure continued effectiveness.
- The first rain separator plays an important role by diverting the initial flow of rainwater, which often contains dust, debris, and other impurities, from the rooftop.
- Filters should be cleaned after every rain, particularly the first few rains in a year.
- The filter media, which helps purify the collected water, should be rinsed every six months and replaced approximately every two years to maintain optimal performance.
- Recharge wells, which allow water to percolate into the ground, should be desilted once every five years to prevent clogging and ensure efficient infiltration.
To maximise the benefits, it is worth exploring how RWH can be implemented not just at the household level, but across entire communities.
Read more: Gaps in BWSSB data, public scepticism: Why rainwater harvesting is not popular in Bengaluru
RWH at the community level
In dense urban layouts, where land is limited and surface runoff is significant, community-scale RWH becomes essential.
In typical urban residential layouts, one finds
- 60% is rooftops
- 20% are roads, and
- 20% is open areas (parks, drains, etc.)
Rooftop systems provide clean water for individual households. Recharge wells placed on the roadside and open areas help manage runoff and improve groundwater levels for all residents.
Let us now examine how such systems can be designed and implemented across communities.
Community recharge wells
Effective community recharge wells must be designed with several components to ensure performance and durability: These components include desilting chambers, stone beds for filtration, overflow pipes, and protective grates.
These systems require collective investment, regular maintenance and coordination among residents. However, their impact is widespread, improving borewell yields, preventing flooding and contributing to overall water security.
Realising these benefits depends on the engagement and collaboration of residents.
Engaging the people
Implementing rainwater harvesting in residential layouts needs active involvement from residents. It is important to have ongoing conversations that inform, educate and help them understand the benefits RWH can bring to their homes and the entire community.
Step 1: The Need for ‘Anchors’ or ‘Champions’
Every successful community initiative needs a few committed individuals who can lead the effort. These anchors must be well-informed, enthusiastic, and willing to lead by example.
Step 2: Engaging the Residents Welfare Association (RWA)
In most developed layouts, RWAs are responsible for managing water and other shared resources. Anchors should understand the RWA’s decision-making processes and work with its members to advocate for RWH through meetings, newsletters and social media groups. In builder-managed layouts, support from residents can help push developers to act.
Step 3: Engaging the resident population
This is often the most time-consuming stage. It involves engaging with residents who may not see the urgency of sustainable water practices. Identifying early adopters and trusted community voices can help build trust and accelerate adoption.
Once awareness is established, the next step is compliance with local regulations and effective planning.
Legal guidelines and planning
Current regulations stipulate that plots larger than 40 x 60 feet must include storage capacity for
- 60 litres per square metre of rooftop area, and
- 30 litres per square metre of non-roof or paved area.
For instance, a property with 100 m² of rooftop and 50 m² of paved area must harvest at least 7,500 litres of rainwater. Overflow from storage tanks should be directed into recharge wells to maximise groundwater replenishment.
Designing such systems requires expertise to ensure they meet both functional and regulatory requirements.
Professional guidance
Given the technical nuances involved in design, filtration, and site-specific planning, it is advisable to consult experienced RWH professionals. They can recommend optimal tank sizes, suitable well placements, and guide the layout-level strategy.
Rainwater Harvesting is a practical, cost-effective, and environmentally responsible method to address urban water challenges. Whether implemented at the household or community level, it helps in conserving water, reducing flooding, and enhancing groundwater resources.
Engaging residents, planning collectively, and maintaining systems responsibly will ensure that RWH delivers long-term value for both individual households and entire communities.
[ Curated from Citizen Matters archives by Shobana Radhakrishnan ]
